Viscose yarn production line
We supply complete
equipment of viscose fiber and rayon filament.
There are many
customers of fibre plants who used our machines in China.
Special recommend Sqeezing machine and Etiolating
machine.
1, Squeezer Type SHR05111-1250
2,

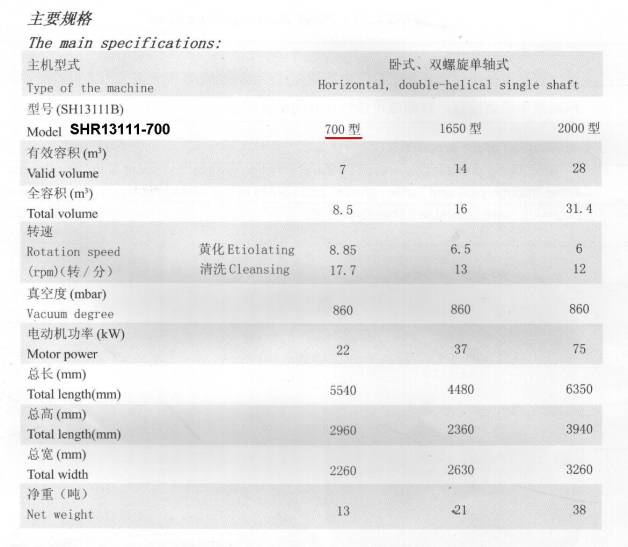

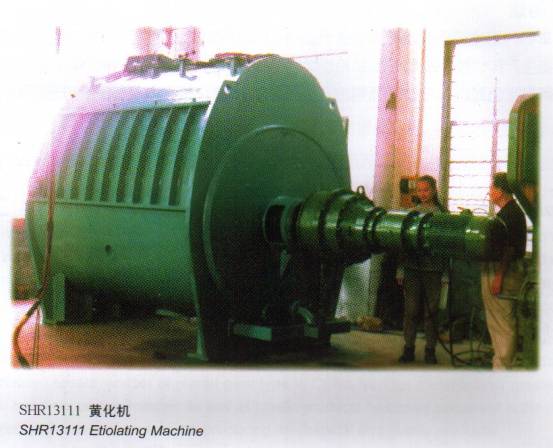

Etiolating machine Type SHR13111-700
供应粘胶纤维成套设备，及关键机台部件，广泛用于国内粘胶长丝生产厂。
特别推荐：压榨机、黄化机、双面纺丝机等。
VISCOSE
& CARBON DISULFIDE CS2 COMPLEX
viscose staple fibre rayon
filament complete equipment
1.
Scope of
supply
Taking
linter pulp and wood pulp as main raw material, the production plant with a
production capacity of 30kt/a viscose staple fibre, including the process
equipment and piping materials (without heat insulation materials),
instrumentation, electricity, air conditioning equipment and spare parts for
the four workshops of dope (including lye station), spinning and after
treatment, acid station and carbon disulfide preparation.
The
civil, lighting, fire fighting, domestic water supply and drainage for the
workshops are not included in the scope of offer.
Utility
facilities are not included in the scope of offer.
The
plot plan and the aboveground and underground piping in the plant site are not
included in the scope of offer.
- The scope of obligations
The
engineering design for the above mentioned four workshops: the procurement and
transportation (FOB) of equipment and materials, technical training, technical
service, start up and performance guarantee.
Not included
in the present offer are geological survey, civil works and the erection work
(and erection materials) for equipment, piping, insulation, instrument,
electricity and air conditioning, etc.
3. Battery limit
The battery
limit is an imaginary boundary which ends one meter outside the unit or
building.
For electricity,
the battery limit starts from the output terminal of low voltage distribution
panel.
The
connection point for incoming utility piping (including water drainage
pipeline) entering into the battery limit from underground is 0.5 meter above
ground level.
4. The quality index of viscose staple fibre (GB/T14463-93)
|
Sr. no |
Item |
Unit |
Index |
Remark |
|
1 |
Dry tenacity at break |
cN/dtex ? |
2.10 2.05 |
Linter pulp Wood pulp |
|
2 |
Wet tenacity at break |
cN/dtex ? |
1.20 1.10 |
Linter pulp Wood pulp |
|
3 |
Dry elongation at break |
% ? |
17 |
|
|
4 |
Linear density deviation |
% ? |
4.00 |
|
|
5 |
Length deviation |
% ? |
6.0 |
|
|
6 |
Over-length fibre |
% ? |
0.5 |
|
|
7 |
Double length fibre |
mg/100g fibre ? |
4.0 |
|
|
8 |
Residual sulfur content |
mg/100g fibre ? |
14.0 |
|
|
9 |
Defects |
mg/100g fibre ? |
4.0 |
|
|
10 |
Stained yellow fibre |
mg/100g fibre ? |
0.0 |
|
|
11 |
Variation coefficient of dry tenacity |
CV ? |
18.0 |
|
|
12 |
Whiteness |
% ? |
68.0 62.0 |
Linter pulp Wood pulp |
5. Raw material specification and consumption
5.1 Raw material specification
5.1.1 Quality index of wood pulp
|
Sr. no |
Item |
Unit |
Index |
|
1 |
? -cellulose content |
％ |
91.5 |
|
2 |
? -cellulose content |
％ |
8.5 |
|
3 |
Calculated ? -cellulose content |
％ |
93.5 |
|
4 |
? -cellulose content |
％ |
4.5 |
|
5 |
Ash content |
％ |
0.15 |
|
6 |
Silicon dioxide |
％ |
0.001 |
|
7 |
Calcium content |
％ |
0.01 |
|
8 |
Iron content |
ppm |
2.3 |
|
9 |
Copper content |
ppm |
0.3 |
|
10 |
Manganese content |
ppm |
0.1 |
|
11 |
DCM extractor |
％ |
0.11 |
|
12 |
ISO whiteness |
％ |
93.2 |
|
13 |
Density |
g/m3 |
0.76 |
|
14 |
Weight |
g/m2 |
791 |
|
15 |
Thickness |
mm |
1.04 |
|
16 |
Moisture content |
％ |
10? 2.0 |
5.1.2. Quality index of soda lye
|
Sr. no |
Item |
Unit |
1st class product |
|
1 |
NaOH |
% |
? 42 |
|
2 |
NaCl |
% |
? 0.007 |
|
3 |
Na2CO3 |
% |
? 0.10 |
|
4 |
Fe2O3 |
% |
? 0.0010 |
|
5 |
SiO2 |
% |
? 0.002 |
|
6 |
Na2SO4 |
% |
? 0.0015 |
|
7 |
Calcium |
% |
? 0.002 |
5.1.3 Quality index of carbon disulfide
|
Sr. no |
Item |
Unit |
1st class product |
|
1 |
Purity |
% |
? 98.5 |
|
2 |
Boiling range |
? C |
45.6 ? 46.6 |
|
3 |
Specific gravity |
|
1.262 ? 1.267 |
|
4 |
Color |
|
Colorless and transparent |
|
5 |
Evaporation residual |
% |
? 0.005 |
|
6 |
H2S |
|
none |
|
7 |
Free acid |
|
none |
4.
Quality
index of sulfuric acid
|
Sr. no |
Item |
Unit |
1st class product |
|
1 |
Purity |
% |
? 98 |
|
2 |
Burning residual |
% |
? 0.03 |
|
3 |
Fe |
% |
? 0.01 |
|
4 |
As |
% |
? 0.005 |
|
5 |
Transparency |
mm |
? 50 |
|
6 |
Color |
ml |
? 2.0 |
- Quality index of zinc sulfate
|
Sr. no |
Item |
Unit |
Index |
|
1 |
ZnSO47H2O |
% |
? 98 |
|
2 |
Iron |
% |
? 0.04 |
|
3 |
Cadmium |
% |
? 0.01 |
|
4 |
Water insolubles |
% |
? 0.02 |
|
5 |
Free acid |
% |
? 0.1 |
|
6 |
Copper and lead compound |
% |
none |
|
7 |
Appearance |
|
White crystal |
5.2 Raw material consumptions
|
Variety |
Unit consumption (ton/ton of yarn) |
Annual consumption (ton) |
||
|
Guarantee |
Expected |
Guarantee |
Expected |
|
|
Wood pulp 93.5% ? - cellulose, 10% water |
1.055 |
1.045 |
31650 |
31350 |
|
Cotton linter pulp 96.5% ? - cellulose, 10% water |
1.045 |
1.035 |
31350 |
31050 |
|
Caustic soda 100% |
0.55 |
0.54 |
16500 |
16200 |
|
Carbon disulfide 100% |
0.20 |
0.185 |
6000 |
5550 |
|
Sulfuric acid 100% |
0.78 |
0.77 |
23400 |
23100 |
|
Zinc sulfate 100% |
0.05 |
0.045 |
1500 |
1350 |
|
Finish |
0.005 |
0.0038 |
150 |
114 |
|
Natural gas |
|
|
|
|
6. Utility specification and consumption
1. Utility specifications
1.
Electricity
AC,
3-phase 4-wires
Voltage
380/220V
Voltage
deviation < + 5%
Frequency 50Hz
Frequency
deviation ? 0.5Hz
- Water
- Production
water
PH value 6.5~8
Total
hardness < 500mg/l (in CaCO3)
Chloride ? 150mg/l
Total iron
< 0.3mg/l
Turbidity
< 5 degree
Pressure at
workshop inlet 0.3 ? 0.4Mpa(g)
- Soft water
Pressure at
workshop inlet ? 0.4Mpa
Temperature ? 32? C
PH value 6.5
? 8
Total
hardness < 35mg/l (in CaCO3)
Chloride ? 30mg/l
Total iron
< 0.2mg/l
Turbidity
< 2 degree
o
Circulation
cooling water
PH 6.5 ~ 8
Chloride ? 150mg/l
Total iron
< 5.0mg/l
Total salt
content ? 1000mg/l
Fouling
factor ? 0.0004(m2.K)/W
Turbidity
< 20 degree
Water
temperature < 32? C
Pressure at
workshop inlet 0.3 ~ 0.4Mpa(g)
- Chilled water
Water
quality meet soft water quality requirement
Water
temperature 0? C at the inlet
5 at the
outlet
Pressure at
workshop inlet 0.3 ~ 0.4Mpa(g)
- Steam (saturated)
Pressure
0.4Mpa (g)
Temperature
151? C
- Compressed air
Dew
point (under normal pressure) - 40? C
Requirement
dry, oil free
Pressure
at workshop inlet 0.6 Mpa (g)
- Nitrogen
Purity
99.99%
Pressure
0.3Mpa (g)
Dew point
(under normal pressure) -20 ? C
1.
Utility
consumptions for process
|
Item |
Unit consumption (ton/ton of yarn) |
Remarks |
|
|
|
Guarantee |
Expected |
|
|
Electricity kWh |
900 |
800 |
|
|
Production water m3 |
130 |
110 |
|
|
Soft water m3 |
65 |
55 |
|
|
Circulation cooling water m3 |
260 |
250 |
In circulation |
|
Steam t |
12 |
10 |
|
|
Compressed air for process m3 |
600 |
|
|
|
Nitrogen m3 |
20 |
10 |
|
Note: The offer does not include the
consumption of utilities (including refrigeration capacity), carbon disulfide preparation,
waste water treatment and off gas treatment.
