Forged Grinding Balls

Product Details:

Grinding steel balls commonly used low-carbon alloy, high manganese steel, high carbon and high manganese alloy steel. On the basis of these material Goldpro has developed a series of competitive and efficient patent grinding steel balls.

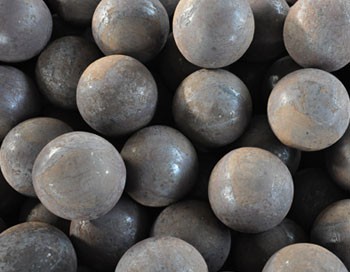

Forged Grinding Balls

Detail

Our products range from 20mm to 150mm, 1 inch to 6 inch, and we can also offer all size of products according to clients’ demand.



Forged Grinding Balls Features and Advantages:

Breakage rate is lower than 0.5%, breakage resistance is better than casting ball. Impact stress is more than 12J/c, Dropping test in 8m high tester for more than 20,000 times, Surface hardness 58-65HRC, core hardness 57-64HRC, Volume hardness 57-64HRC. High wearable, no deformation, low breakage and uniform hardness.



Technical Parameters:

Nominal Diameter(mm)

Dimensional Tolerance(mm)

Roundness %

Φ20





Φ25

Φ30

±2

2.0

 Φ35

Φ40

Φ50

Φ60

Φ70

+3,-2

3.0

Φ75

Φ80

Φ90

Φ100

+4,-3

4.0

Φ120

Φ125

Φ130

 Φ150

+5,-4

5.0
